PreFormX® PVC
Premium Architectural Membranes
Engineered for Performance. Designed for Precision.
Advanced PVC-coated polyester membranes combining controlled biaxial stabilization, integrated yarn protection and multi-layer surface technology for demanding permanent tensile architecture.
Architectural Membranes Engineered for Reliability.
Engineered for Performance. Designed for Precision.
PreFormX® represents FPC's premium PVC architectural membrane platform, developed to meet the demanding mechanical, dimensional and environmental requirements of permanent tensile structures.
Combining controlled biaxial stabilization, high-tenacity polyester reinforcement, multi-layer PVC coating and bilateral modified PVDF surface protection, PreFormX® brings together the technologies required for consistent membrane performance.
At the heart of the collection is an integrated engineering approach that addresses how the fabric behaves under tension, how it responds to prolonged environmental exposure and how its surface maintains architectural appearance.
The collection also incorporates TensiDry®, FPC's integrated low-wick yarn protection technology, developed to limit capillary moisture migration within the textile reinforcement.
Available across five mechanical grades, from Type I to Type V, PreFormX® provides architects, structural engineers and specialist membrane fabricators with a range of material options for different structural and design requirements.
Key Engineering Advantages
Biaxial Stabilization
Controlled tension during coating to manage warp/fill mechanical balance and dimensional behavior.
TensiDry® Yarn Protection
Integrated low-wick filament protection is designed to reduce moisture migration within the reinforcement.
Multi-Layer Coating
Engineered PVC coating architecture incorporating TiO₂-based UV stabilization.
Bilateral PVDF Protection
Modified PVDF lacquer on both membrane surfaces for exterior surface performance.
Dimensional Precision
Grade-specific elongation characteristics for engineering and prestress assessment.
Optical & Solar Performance
Documented visible-light, solar-reflectance and solar-factor properties.
Controlled Where It Matters Most.
PreFormX® applies controlled biaxial tension during the coating stage, where the interaction between the textile reinforcement and coating system influences the finished membrane's dimensional behavior.
This process is designed to support balanced warp/weft mechanical properties, controlled elongation, reduced residual deformation and reliable membrane geometry under the specified loading conditions.
The architectural benefit: greater predictability when designing and fabricating prestressed tensile structures.

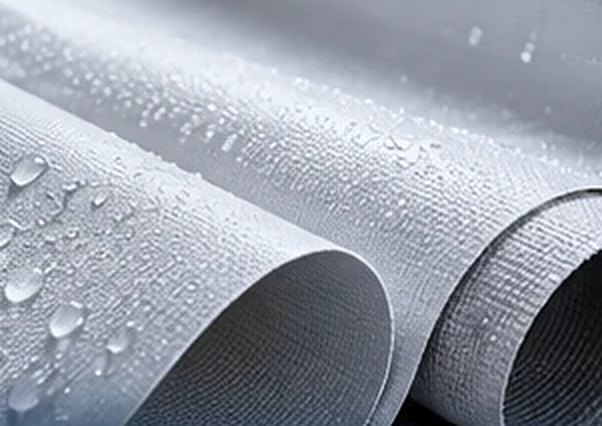

Protection Begins Within the Yarn.
Moisture migration within textile reinforcement can influence the appearance and long-term condition of coated architectural fabrics, particularly around exposed edges and fabricated details.
TensiDry® integrates fluorocarbon-based protection within the polyester yarn system, rather than relying exclusively on surface-applied treatment.
Developed to limit capillary moisture migration, this technology adds another level of protection within the PreFormX® membrane construction.
Integrated at Filament Level. Engineered for Long-Term Protection.
Advanced Protection. Layer by Layer.
The PreFormX® construction combines several complementary material technologies.
- 01Bilateral Modified PVDF LacquerProtective surface finishing on both sides of the membrane.
- 02UV-Stabilized PVC CoatingPVC coating formulation incorporating TiO₂ reinforcement.
- 03High-Tenacity Polyester ReinforcementEngineered textile base providing grade-specific mechanical strength.
- 04TensiDry® Filament ProtectionLow-wick yarn technology integrated within the reinforcement.
- 05Controlled Biaxial StabilizationManufacturing control supporting defined dimensional characteristics.
One Platform. Five Structural Grades.
Select according to the mechanical requirements determined by the project's structural design.
| Product | Grade | Weight |
|---|---|---|
| PreFormX® 750 | Type I | 750 g/m² |
| PreFormX® 950 | Type II | 950 g/m² |
| PreFormX® 1100 | Type III | 1,100 g/m² |
| PreFormX® 1350 | Type IV | 1,350 g/m² |
| PreFormX® 1500 | Type V | 1,500 g/m² |
Technical Specifications — Mechanical Performance
| Property | PreFormX® 750 | PreFormX® 950 | PreFormX® 1100 | PreFormX® 1350 | PreFormX® 1500 |
|---|---|---|---|---|---|
| Type | I | II | III | IV | V |
| Weight (g/m²) | 750 | 950 | 1,100 | 1,350 | 1,500 |
| Thickness (mm) | 0.55 | 0.73 | 0.82 | 1.04 | 1.15 |
| Tensile warp (N/5 cm) | 3,000 | 4,200 | 6,000 | 8,200 | 10,000 |
| Tensile weft (N/5 cm) | 3,000 | 4,000 | 5,800 | 7,200 | 9,000 |
| Tear warp (N) | 350 | 600 | 850 | 1,200 | 1,700 |
| Tear weft (N) | 350 | 550 | 700 | 1,150 | 1,500 |
| Adhesion (N/5 cm) | 100 | 120 | 130 | 150 | 160 |
| Residual elongation | <0.7% | <0.7% | <1.0% | <1.0% | <1.5% |
All five grades are listed with a nominal width of 300 cm and a nominal roll length of 100 linear metres.
Technical Specifications — Optical and Solar Performance
| Property | PreFormX® 750 | PreFormX® 950 | PreFormX® 1100 | PreFormX® 1350 | PreFormX® 1500 |
|---|---|---|---|---|---|
| Visible transmittance Tv | 7% | 6% | 4% | 3% | 3% |
| Visible reflectance Rv | 89% | 87% | 91% | 90% | 90% |
| Solar transmittance Ts | 10% | 7% | 6% | 5% | 4% |
| Solar reflectance Rs | 77% | 79% | 82% | 82% | 81% |
| Solar factor (g) | 13.5% | 12.5% | 9% | 8% | 7% |
| Solar Reflectance Index | >95 | >95 | >95 | >95 | >95 |
Values are nominal and subject to technical verification against the current datasheet.
Architectural Applications
Stadiums & Sports Facilities
Permanent membrane roofs and tensile systems requiring engineered mechanical properties.
Airports & Transport Terminals
Architectural roof and canopy systems for transport infrastructure.
Documentation and Technical Downloads
- PreFormX® PVC Collection Brochure Download collection PDF
- PreFormX® 750 — Type I Download datasheet
- PreFormX® 950 — Type II Download datasheet
- PreFormX® 1100 — Type III Download datasheet
- PreFormX® 1350 — Type IV Download datasheet
- PreFormX® 1500 — Type V Download datasheet
Documents are sent to your email: tell us who you are and where to send them.
Precision Begins with the Right Membrane.
From material selection and mechanical performance to optical properties and fabrication requirements, every permanent tensile structure demands a carefully engineered solution.
FPC works with architects, structural engineers, consultants and specialist fabricators to support the evaluation and specification of PreFormX® architectural membranes. Explore the technical collection and connect with our team to identify the appropriate material grade for your project.
