ArchiMesh®

Architectural Façades & Mesh Systems

More Than a Mesh. Shaping Architecture Through Light, Air & Shadow.

Engineered PTFE-coated fiberglass and PVC-coated polyester mesh systems for expressive façades, external shading and architectural building envelopes.

Explore the Collections Technical Comparison

More Than a Mesh. Shaping Architecture Through Light, Air & Shadow.

One Architectural Vision. Two Material Technologies. Multiple Design Possibilities.

Architectural mesh has evolved beyond conventional screening to become an expressive component of contemporary building design.

From breathable façades and secondary building skins to external shading systems and lightweight architectural structures, engineered mesh enables designers to explore the relationship between transparency, daylight, ventilation, solar protection and architectural identity.

ArchiMesh® is FPC's architectural mesh collection, developed around two distinct material technologies: PTFE-coated fiberglass and PVC-coated polyester.

Each collection offers different mechanical, optical, surface and fabrication characteristics, allowing architects, façade consultants, engineers and specialist fabricators to select materials according to their specific design and performance requirements.

Manufactured in Saudi Arabia using FPC's integrated textile production capabilities, ArchiMesh® brings together material engineering, architectural flexibility and technical performance.

Key Architectural Performance Considerations

Solar Shading

Different constructions provide varying levels of solar screening and daylight penetration.

Natural Ventilation

Open mesh geometry permits airflow through architectural screens and building envelopes.

Visual Transparency

Openness, weave geometry and color influence views, transparency and visual privacy.

Architectural Identity

Square and diamond mesh geometries create different textures, rhythms and shadow patterns.

Mechanical Performance

Engineered reinforcement systems provide defined tensile properties for structural assessment.

Outdoor Performance

Coating technologies and surface finishes are selected for the intended exposure conditions.

Two Material Collections

Collection 01 · PTFE / fiberglass

ArchiMesh® PTFE

Engineered Mesh for Demanding Architectural Applications

PTFE-coated fiberglass mesh systems developed for façades, permanent shading structures and architectural applications where material stability, outdoor durability and product-specific fire performance are important.

The collection includes conventional architectural mesh constructions with different openness levels and the distinctive ICONWEAVE® diamond-mesh technology.

Explore ArchiMesh® PTFE
Collection 02 · PVC / polyester

ArchiMesh® PVC

Versatile Mesh for Contemporary Façades & Shading

PVC-coated polyester mesh systems offering architectural versatility through different openness levels, mechanical constructions, finishes and color possibilities.

Developed for building façades, external shading, parking structures, pedestrian areas and other outdoor architectural applications, the collection includes square-weave meshes and ICONWEAVE® diamond geometry.

Explore ArchiMesh® PVC
Featured innovation

ICONWEAVE®

The Diamond-Mesh Evolution

A distinctive diamond-shaped weave that transforms architectural mesh into a design feature.

Its rhombus aperture geometry creates a recognizable architectural texture, influencing light transmission, visual openness and the patterns of shadow across building surfaces.

Available within FPC's architectural mesh development portfolio, ICONWEAVE® gives architects an alternative to conventional square-weave geometry.

Discover ICONWEAVE®
Illustration of the diamond aperture geometry.

Technical Comparison — Choosing the Right Material Technology

CharacteristicArchiMesh® PTFEArchiMesh® PVC
Base textile Fiberglass Polyester
Coating technology PTFE PVC / PVDF
Primary positioning Demanding permanent architecture Versatile architectural and shading applications
Mesh geometries Standard and diamond weave Square and diamond weave
Openness 10 to 53% 10 to 38%
Fire performance Non-Combustible — EN 13501-1 A2-S1-d0 Fire Retardant — EN 13501-1 B-S2-d0
Surface and finish PTFE-based coating system PVC coating with specified PVDF finishes
Fabrication Hot-bar PTFE welding and FEP tape HF welding
Available documentation Technical datasheets and test reports Technical datasheets and test reports
ArchiMesh® PVC

Available Mesh Grades

Available Mesh Grades
Product Weight (g/m²)Tensile warp/weft (N/5 cm)Architectural positioning
ArchiMesh® 500 4802,800 / 2,800Higher transparency
ArchiMesh® 600 6503,300 / 3,300Balanced architectural performance
ArchiMesh® 900 9004,200 / 4,000Higher mechanical strength
ICONWEAVE® PVC 1,0004,200 / 4,000Distinctive diamond-weave appearance

ArchiMesh® PTFE

ArchiMesh® PTFE
Product Primary distinction
FGM-670-21 Architectural PTFE mesh with approximately 21% open area
FGM-700-50 More open PTFE mesh construction, approximately 50% open area
FGM-750-10 Lower-openness PTFE mesh construction, approximately 9% open area
ICONWEAVE® PTFE Diamond-weave architectural mesh with approximately 37% open area

Full technical comparison tables are on the PTFE and PVC collection pages. Values are nominal and subject to technical verification.

Applications — Where ArchiMesh® Performs

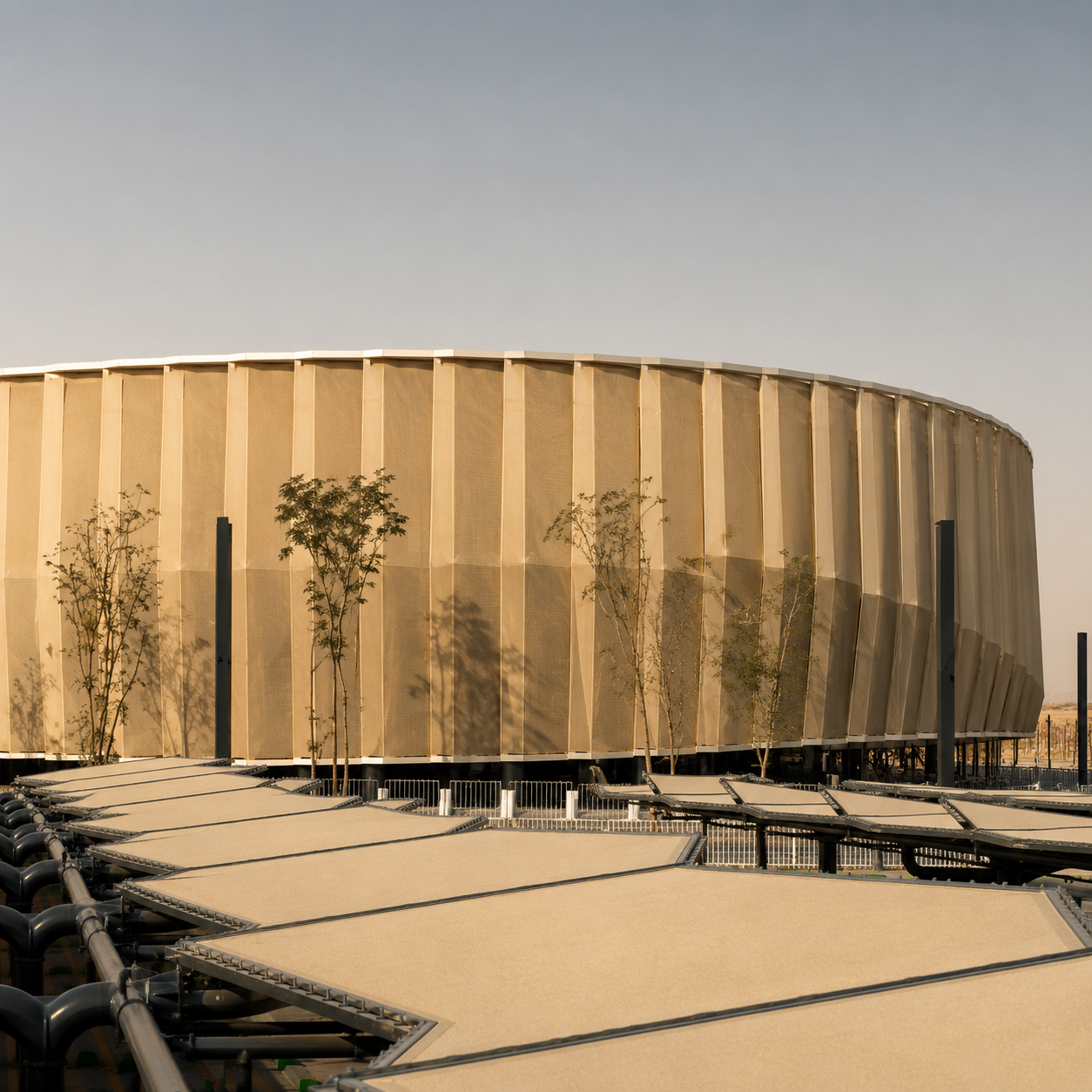

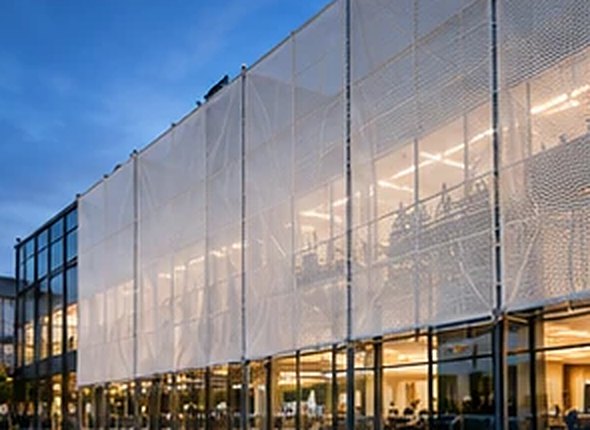

Building Façades & Secondary Skins Architectural screening, external envelopes, visual identity and daylight modulation.

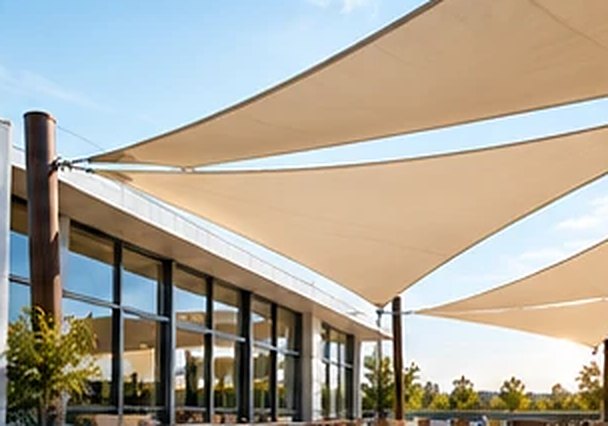

External Shading Systems Engineered mesh for canopies, shading elements and open-air architectural spaces.
Parking & Transport Infrastructure Shading and screening for parking structures and transport facilities.
Public Spaces & Pedestrian Areas Lightweight architectural mesh for walkways, plazas and public spaces.

Technical Resources & Documentation

Documents are sent to your email: tell us who you are and where to send them.

Designing with Architectural Mesh?

The selection of an architectural mesh requires more than choosing a fabric weight or openness percentage.

Structural geometry, wind exposure, supporting systems, daylight requirements, visual transparency, fabrication methods and the intended architectural appearance all influence the most suitable material.

FPC works with architects, façade consultants, engineers and specialist fabricators to review these requirements and identify appropriate PTFE or PVC architectural mesh solutions.

Explore Technical Specifications Request Samples Discuss Your Project
